FRAME

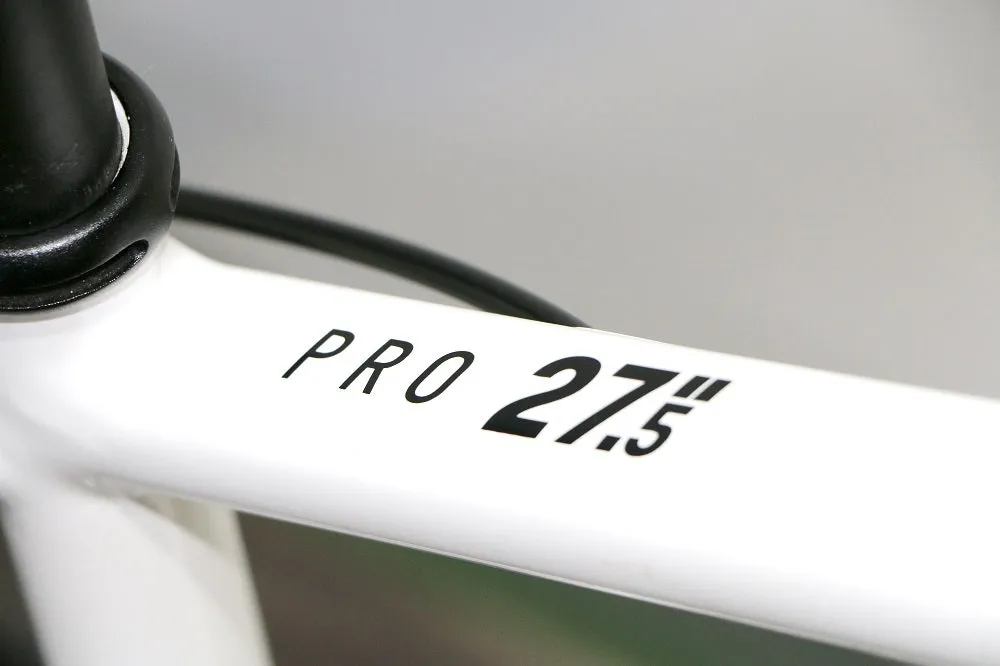

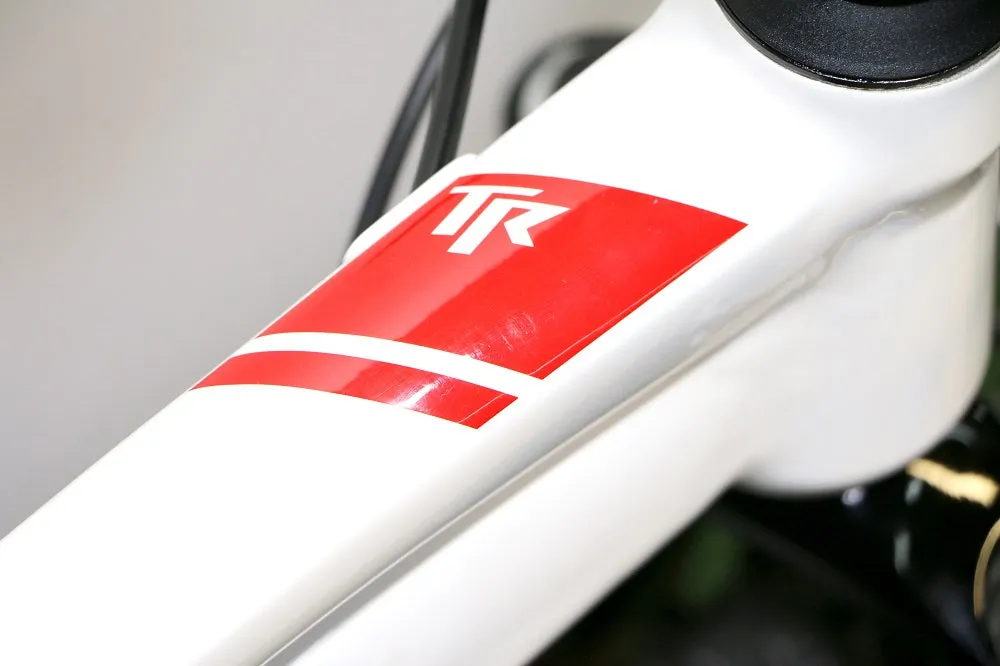

TR JUNIOR BOYS 27.5" 6061 Aluminium RACE DISC FRAME
JUNIOR GEOMETRY / HYDROFORMED TUBING / INTERNAL CABLE ROUTING / SMOOTH WELDING / QR REAR AXLE / DISC ONLY

SIZE
27.5 x 13.5

FORK

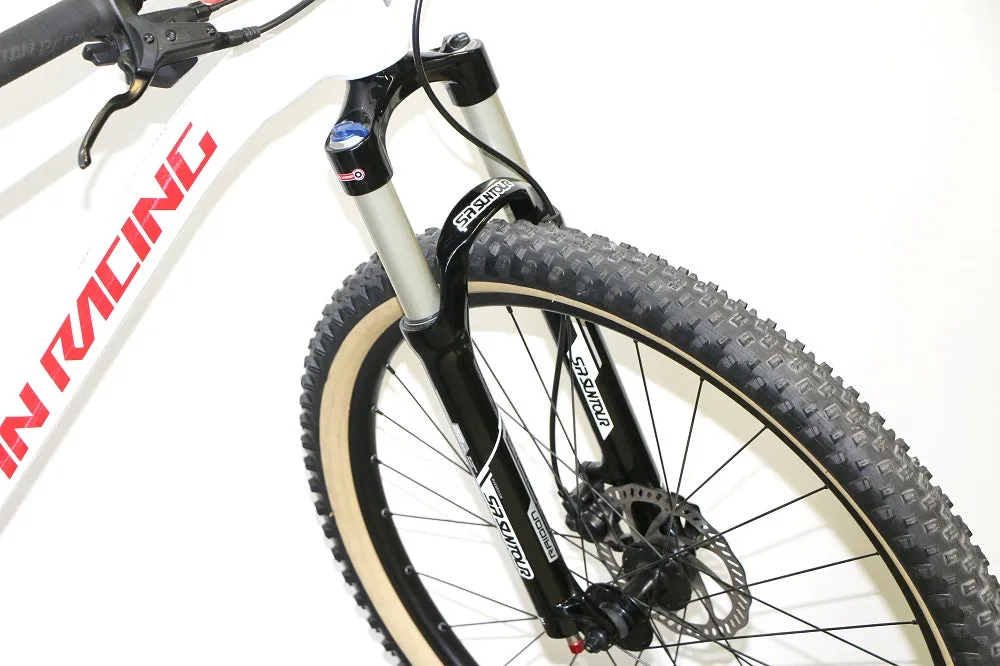

SWOOP 860 AIR 100m
27.5 / 100mm / AIR SPRING / 32mm STANCHIONS / HYDRAULIC LOCKOUT / 9mm DISC

CHAINWHEEL

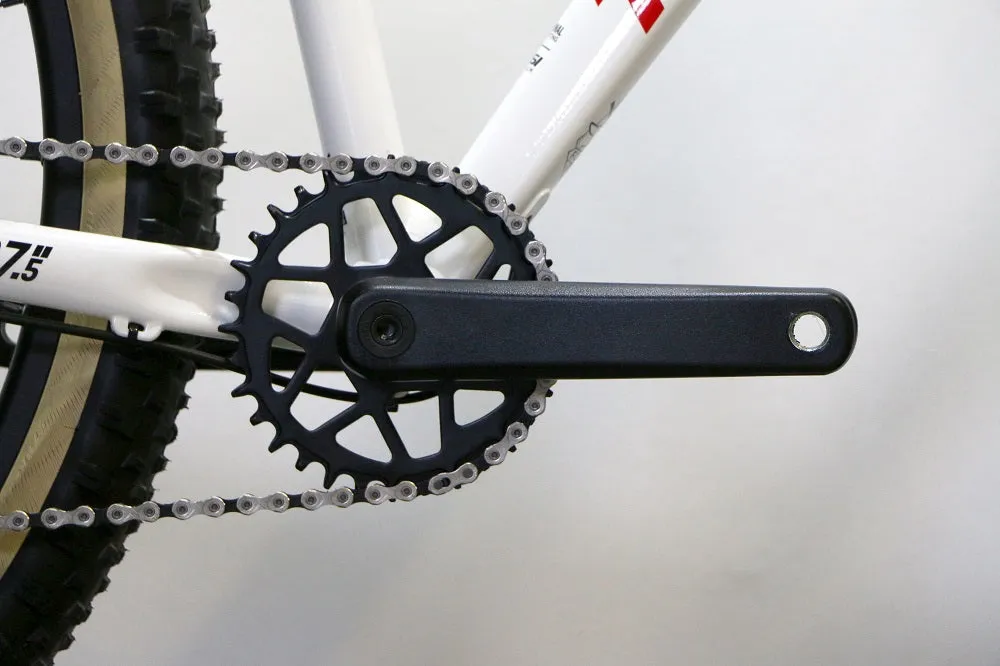

PROWHEEL 32T ALLOY
PROWHEEL A10Y-NW 32T NO PROWHEEL BRANDING

DERAILLEUR REAR

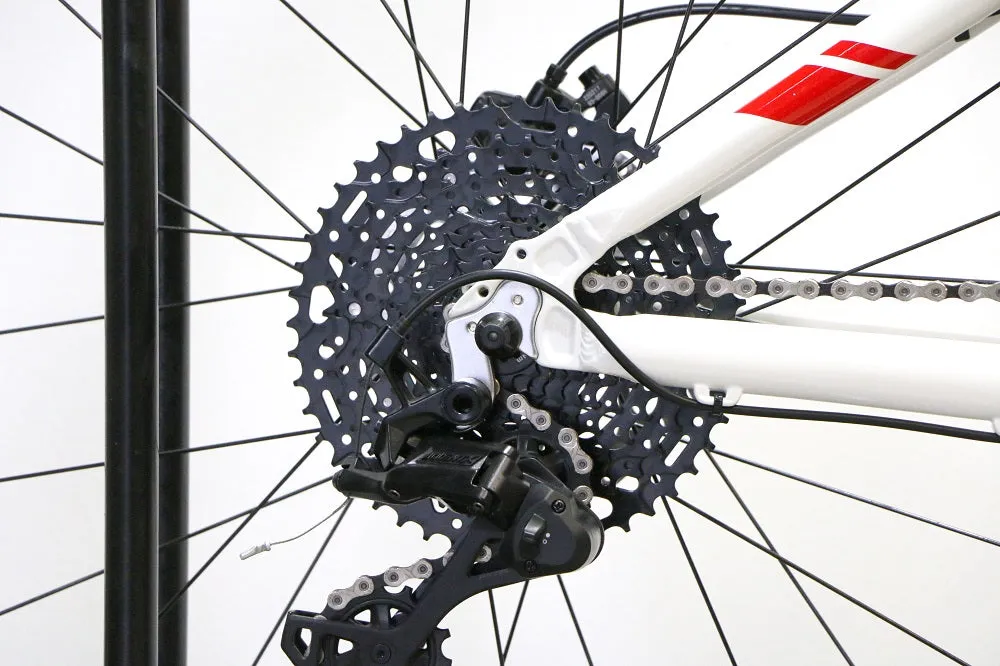

MICROSHIFT ADVENT X RD-M6205GM

SHIFTER RIGHT
MICROSHIFT ADVENT X SL-M9605-R

CHAIN
KMC X10

FREEWHEEL
MICROSHIFT CS-G104 11-48T

BB SET
CH-52, One Piece, BC1.3724T, One piece

SPEED
1 X 10 SPEED

BRAKE LEVER
TEKTRO

BRAKE FRONT
TEKTRO HD-M275 WITH 160MM ROTOR

BRAKE REAR
TEKTRO HD-M275 WITH 160MM ROTOR

RIMS
TR JR 27.5" DISC RIM 28H
TR 27.5 MATT BLACK ALLOY / DOUBLE WALL / EYELETS / A/V / 14G X 28H (MD16)

HUB FRONT
ALLOY DISC BLACK Q/R
DC-1420, 14Gx28H, Q/R-M9x100x108mm

HUB REAR
ALLOY DISC BLACK Q/R
DC-1425, 8/9/10s, 14Gx28H, Q/R-M10x135x145mm

SPOKES
STEEL, ED 14Gx277mm / 14Gx279mm

TUBE
A/V

TYRES
VEE CROWN GEM 27.5" X 2.25"
TRAIL XC / MPC COMPOUND / 27TPI WIRE BEAD SKINWALL (NATURAL WALL)

GRIP
TR JUNIOR GRIP

HANDLEBAR
TR COMP FLAT H/BAR 680MM
TR HB-M003 FLAT 680MM

HANDLEBAR STEM
TR JUNIOR OS 45MM
TR-SM-M015 45MM

HEADSET
FP-871, Ball retainer, Semi, 28.64452mm

SPACER
10mm

SADDLE
SR VIVO JUNIOR 1705J

SEAT POST
TR JUNIOR 27.2mm 300mm
TR SP-002 ALLOY 27.2mm 300mm

SEAT CLAMP
NEW MX-95RT ALLEN KEY TYPE
