FRAME
CYPHER X6 ALUMINIUM FRAMESET
HYDROFORMED TUBING / FLIP CHIP / INTERNAL CABLE ROUTING / BOOST 148MM WITH THRU AXLE / BSA 73MM

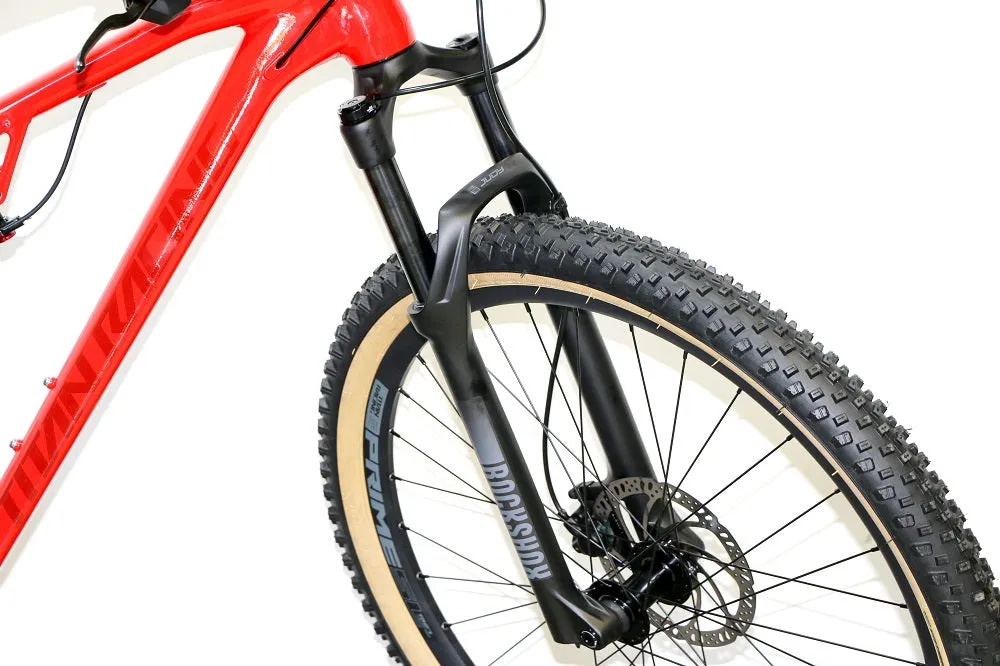

FORK
ROCKSHOX JUDY SILVER AIR 120mm
29 / 120mm / SOLO AIR SPRING / 30mm STANCHIONS / TURNKEY DAMPER / 51mm OFFSET / DIFFUSION BLACK / 15 x 110mm THRU AXLE BOOST / FS JUDYS TK R 29 SB 100 DFB FB 51 A3

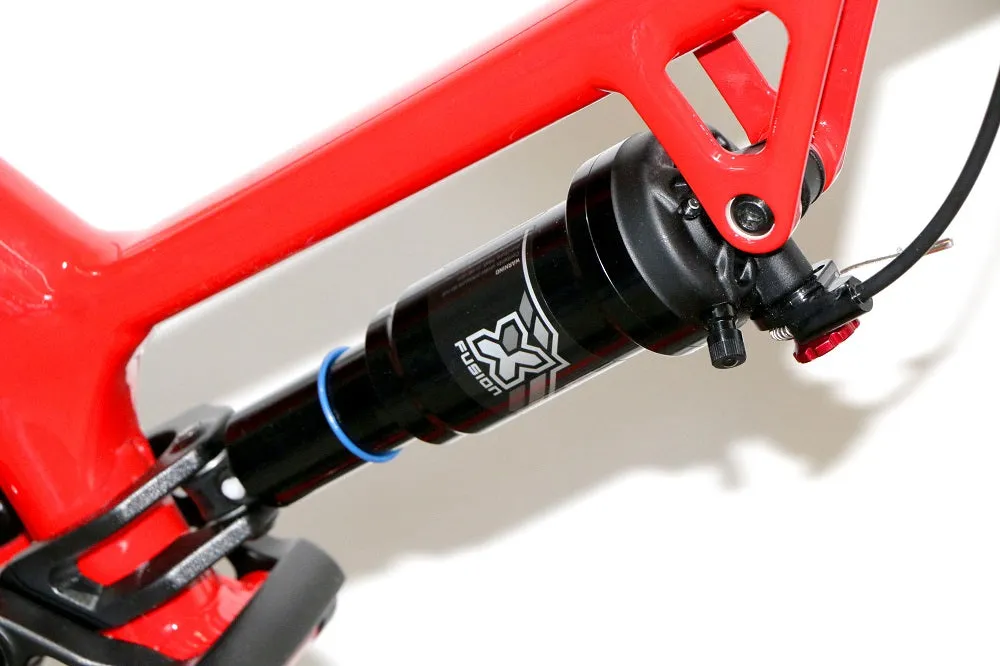

REAR SHOCK
X-FUSION O2 RLR WITH QUICK FLIP REMOTE
XC-TRAIL / AIR SPRING / REBOUND AND LOCKOUT ADJUSTMENT / METRIC / 190 X 45 D TUNE

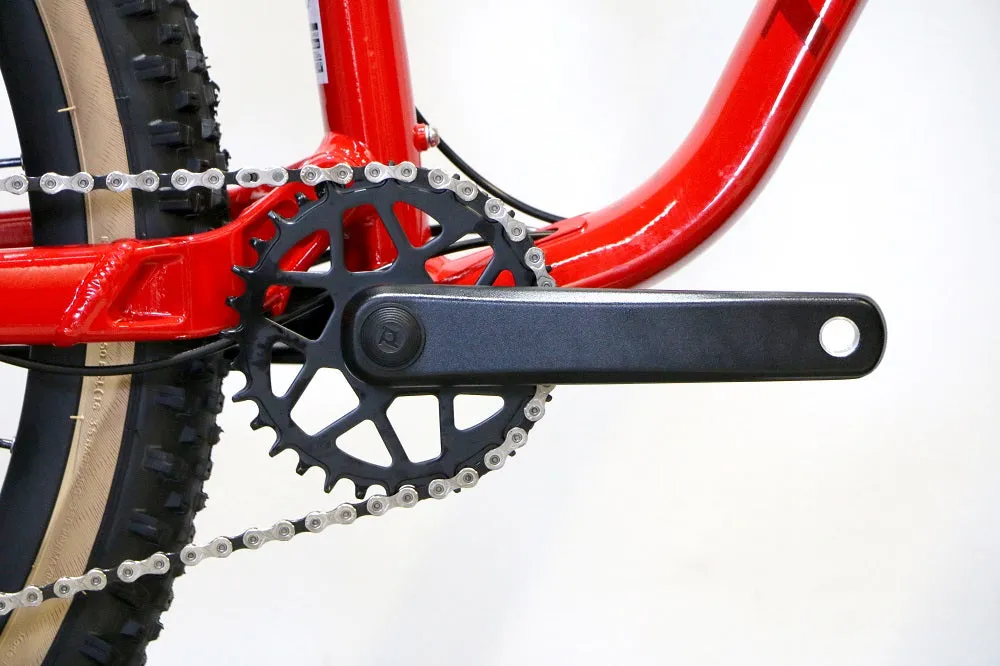

CHAINWHEEL
PROWHEEL A10Y-NW 32T
PROWHEEL BSA 73mm / 32T / 10 SPEED / ALLOY CRANK / STEEL CHAINRING / 52mm CHAINLINE BOOST 148 / NO GUARD / S 170mm CRANKARM / M L XL 175mm CRANKARM

DERAILLEUR REAR
MICROSHIFT ADVENT X RD-M6205GM

SHIFTER RIGHT
MICROSHIFT ADVENT X SL-M9605-R

CHAIN
KMC 10

FREEWHEEL
MICROSHIFT CS-G104 11-48T

BB SET
FP-B902W, BC1.37\X24t, One piece

SPEED
10 SPEED

BRAKE LEVER
TEKTRO

BRAKE FRONT
TEKTRO HD-M275 WITH 180MM ROTOR

BRAKE REAR
TEKTRO HD-M275 WITH 160MM ROTOR

RIMS
PRIME SL 27 TLR RIM 32H
TR PRIME SL 27 / 29er / MATT BLACK / DOUBLE WALL W/EYELETS / 32H / TL-READY / F/V

HUB FRONT
TR PRO ALLOY BLACK BOOST
DC-511, THRU, 14Gx32H-M15x110, Boost

HUB REAR
TR PRO ALLOY BLACK BOOST
DC-3248, 8/9/10s, THRU, 14Gx32H-M12x148, Boost

SPOKES
Stainless BLACK 14Gx290mm / 14Gx288mm

TUBE
29 F/V

TYRES
VEE CROWN GEM 29" X 2.3
TRAIL XC / MPC COMPOUND / 27TPI WIRE BEAD SKINWALL (NATURAL WALL)

GRIP
TR SLIDELOCK GRIP

HANDLEBAR
TR PRO ALLOY RISER BAR 780MM
PROMAX HB-3188DB R15 780MM

HANDLEBAR STEM
TR PRO ALLOY STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / S = 60mm / M/L = 80mm / XL = 100mm

HEADSET
FP-856, Ball Bearing, 28.64456mm39.8mm

SPACER
10mm X 2 PCS

SADDLE
PROLOGO NAGO X12 RS STN NYLON INJ MICROFIBER P3

SEAT POST
X-FUSION MANIC WITH REMOTE 31.6
S = 100MM / M L XL = 125MM / XC/TRAIL ALLOY CONSTRUCTION / INFINITE ADJUST / INTERNAL CABLE ROUTING / PLASTIC MANIC REMOTE 31.9

SEAT CLAMP
NEW MX-95RT ALLEN KEY TYPE

BIKE WEIGHT
15.3 kg
