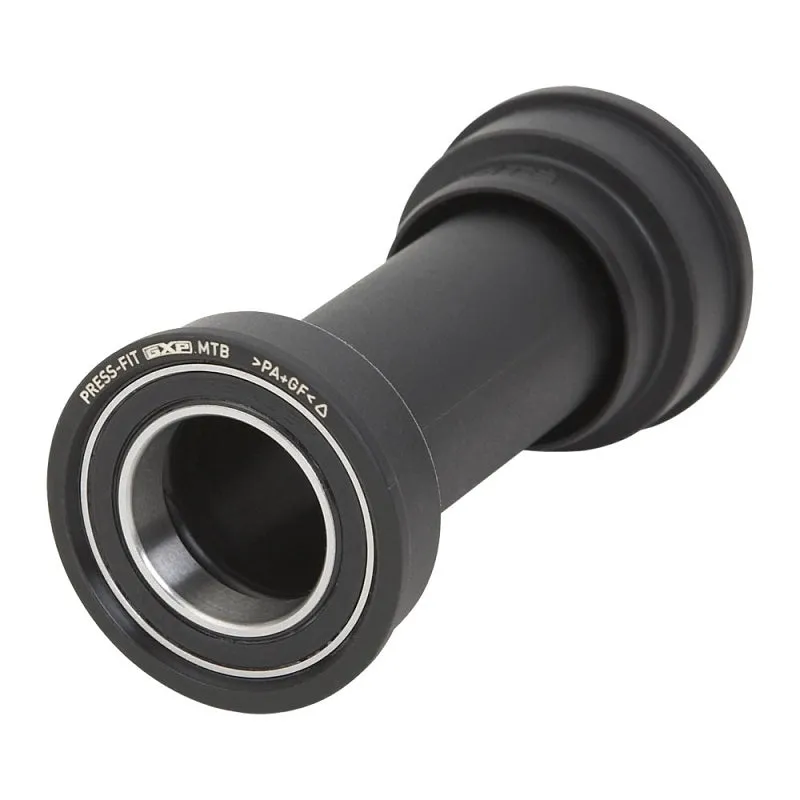

A variant of the external bottom bracket, PressFit cuts weight and provides easier installation by allowing you to press the bearing cups into the frame instead of threading them. There's no change to the crank - spindle length and diameter remain the same.

FEATURES:

PressFit cuts weight.
Easier installation by allowing you to press the bearing cups into the frame.
GXP compatible.
Easy installation.

SPECIFICATIONS:

BB-FRAME INTERFACE PF30 to English/BSA 68/73mm, PressFit (MTB/DH: 104.5mm), PressFit (MTB: 121mm), PressFit (MTB: 89/91.5mm), PressFit (MTB: 89/92mm), PressFit (Road: 86.5mm), PressFit (SBC: 84.5mm)
CHAINLINE n/a
SPINDLE LENGTH n/a
SUPPORT E-TYPE FD n/a
CRANK-BB INTERFACE GXP, PressFit
BEARING TYPE Standard
SPINDLE DIAMETER 24mm
CUP MATERIAL Plastic
WEIGHT (G) 89
WEIGHT BASED ON BB GXP Team PressFit BB92
