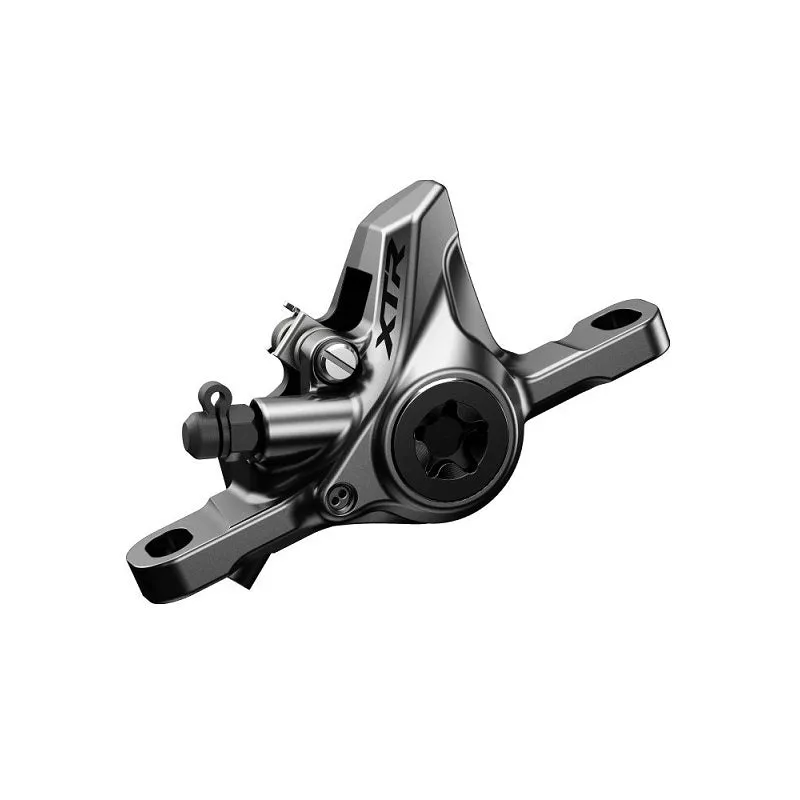

The XTR M9100 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and a pair of ceramic pistons for perfect, Rider Tuned stopping power.
FEATURES High-performance brake control Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000 High rigidity New high rigidity brake hose and 1-piece aluminum caliper Lightweight 26 g lighter (vs. BL/BR-M9000 with disc brake rotor) Straight hose connection
PRODUCT SPECIFICATIONS MODEL NO: BR-M9100 SERIES: XTR M9100 Series Color: Series color Average weight: 193 Remarks ** Titanium Brake type: Hydraulic disc brake Brake hose (Kit): SM-BH90-SS Hose joint: Straight Brake hose color (kit)|1: Black J-Kit spec (for OEM): Pad|Standard 1: K05Ti-RX Resin (w/o fin) Pad|Standard 2: K04Ti-MX Metal (w/o fin) Recommended brake lever BL-M9100 Recommended disc brake rotor: RT-MT900 Compatible Brake Rotor Size|140 mm (SS): Compatible Brake Rotor Size|160 mm (S): Compatible Brake Rotor Size|180 mm (M): Oil: SHIMANO Mineral ONE WAY BLEEDING: Mount type: Post-type Piston: 2 Caliper|MONO-BODY: Caliper fixing bolt|Tool size: ** 4 mm Caliper fixing bolt|Anti loosen method Wiring Pad mount: Pad axle
