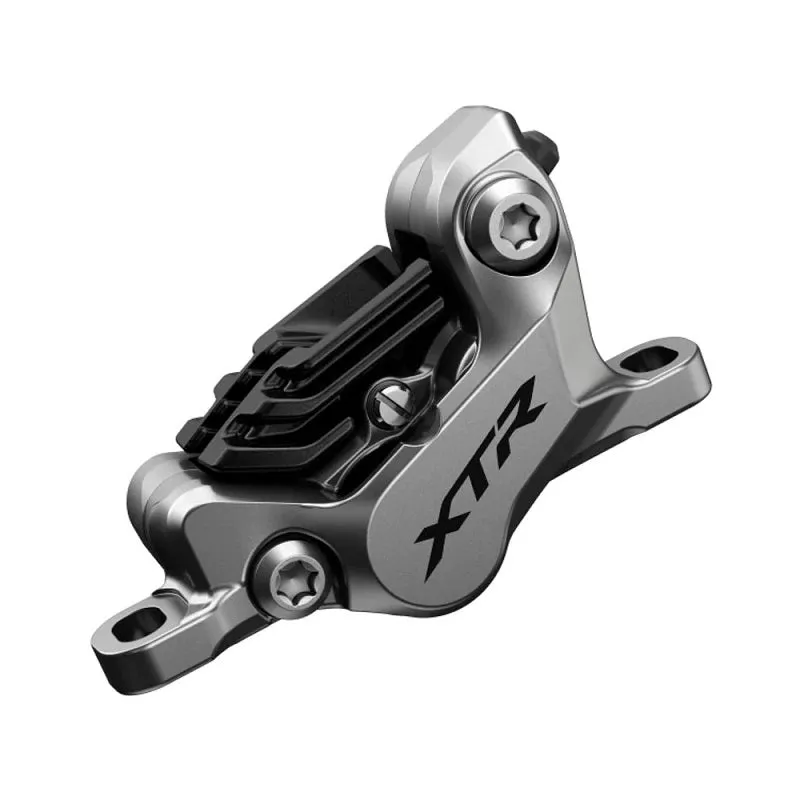

The XTR M9120 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and four ceramic pistons for perfect, Rider Tuned stopping power.
FEATURES High-performance brake control Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000 High power 10% braking power up (vs. M9020) 4 piston low-profile design Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS MODEL NO: BR-M9120 SERIES: XTR M9100 Series Color: Series color Average weight: 262 Remarks ** Titanium Brake type: Hydraulic disc brake Brake hose (Kit): SM-BH90-SBM Hose joint: Banjo Brake hose color (kit)|1: Black J-Kit spec (for OEM): ICE TECHNOLOGIES pad compatible caliper: Pad|Standard 1: N03A-RF Resin (w/ fin) Pad|Standard 2: N04C-MF Metal (w/ fin) Recommended brake lever BL-M9120 Recommended disc brake rotor: RT-MT900 Compatible Brake Rotor Size|140 mm (SS): Compatible Brake Rotor Size|160 mm (S): Compatible Brake Rotor Size|180 mm (M): Compatible Brake Rotor Size|203 mm (L): Oil: SHIMANO Mineral Mount type: Post-type Piston: 4 Caliper fixing bolt|Tool size: ** 4 mm Caliper fixing bolt|Anti loosen method Wiring Pad mount: Pad axle
