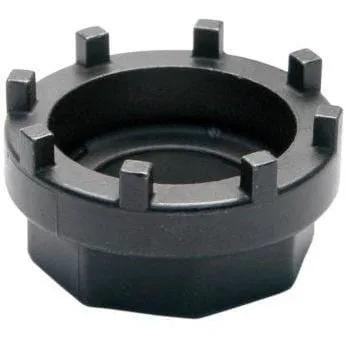

The BBT-18 has 8 notches with an outside diameter of nominally 43.4mm. The inside-to-inside width is approximately 38mm. Each notch is approximately 3.9mm wide. The hole in the center of the casting is 22.5mm, and will not fit over the 30mm spindles. Can be used with a 36mm crowfoot (such as the TWB-36) or open-ended wrench.
The Park Tool BBT-18 Bottom Bracket Bike Tool for 8-Notch ISIS Cups is a heavy-duty, investment cast tool for installing and removing the following:
- Shimano Octalink right side bottom bracket cup with external notches
- Bontrager ISIS Drive bottom bracket cups
- Front chainring lockring for Bosch Gen 3 and Gen 4 e-bike systems and Specialized Levo Brose e-bike systems
